Akuvox SIP Android Door Phone With Facial Recognition
- Key Features
-
-

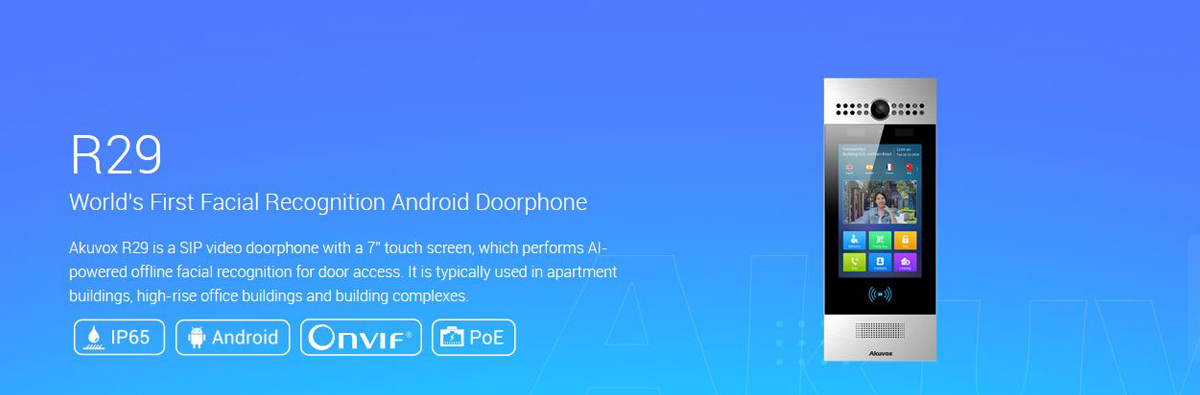

R29
World's First Facial Recognition Android Doorphone
Akuvox R29 is a SIP video doorphone with a 7” touch screen, which performs AI-powered offline facial recognition for door access. It is typically used in apartment buildings, high-rise office buildings and building complexes. - At a Glance
- Enables audio and visual monitoring of doors/gates which increase security on residential or commercial premises;
- Dual camera for anti- counterfeit, completely solve all kinds of photos and video deception on various carries;
- Face verification accuracy >99.9%; face comparison speed <0.5s per person; false recognition rate <0.1%;
- Allows both audio and video communication to an IP phone, mobile client, or softphone;
- Enables the ability to remotely control the door/gate;
- Presents information and user navigation options unique to your business;
- Speeds response time to visitors, delivery and service personnel that require access;
- Physical & Power
- Front panel: Aluminum, RAM / ROM: 2GB / 16GB, Display: 7 Inch IPS LCD, Screen: 7 Inch capacitive touch screen, Main Camera: 3M pixels, automatic lighting, Auxiliary Camera: 1M pixels, Light sensor: Support, Infrared sensor: Support, Wiegand port: Support, RS485 port: Support, RF card reader: 13.56MHz & 125kHz, Relays ln/out: 3/3, Microphone: -32dB, Speaker: 8Ω / 2W, Bluetooth: Support, Ethernet port: RJ45, 10/100Mbps adaptive, 802.3af Power-over-Ethernet, 12V DC connector (if not using PoE), IP/IK Level: IP65/ IK06, Installation: Flush-mounted & Wall-mounted, Flush-mounted DIM: 324x130x60mm, Wall-mounted DIM: 324x130x33mm, Working Humidity: 10-90%, Working Temperature: -20°C - +55°C, Storage Temperature: -40°C - +70°C
- Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ, G.729
- Broadband audio codec: G.722
- DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
- Video
- Sensor: 1/3", CMOS
- Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
- Video codec: H.264
- Video resolution: up to 1920x1080p
- Max. image transfer rate: 1080p - 25fps
- Viewing angle: 120*(H)/ 64°(V)
- High intensity IR LEDs for picture lighting during dark hours with internal light sensor
- White LEDs for QR code scanning
- Compatible to 3rd-party video components,
- Networking and Protocol
- Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
- Door Entry Feature
- Android OS for any 3rd-party software or customization
- Relays controlled individually by DTMF tones
- Multi-way Unlock: Face, IC/ID Card, PIN and BLE
- Camera permanently operational
- Auto-night mode with LED illumination
- White balance: auto
- Minimum illumination: 0.1LUX
- Deployment & Maintenance
- Auto-Provisioning, Web management portal, Web-based packet dump, Configuration backup / restore, Entry log export, Access table export / import, Firmware upgrade, System logs (include door access logs)
- Application Scenario
- Office door phone with on-site or hosted IP-PBX
- Remote site entry over Internet
- Apartment/flat intercom with door access control
- Business information or a welcome experience for guests
-
