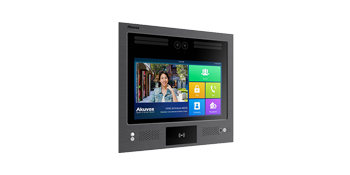

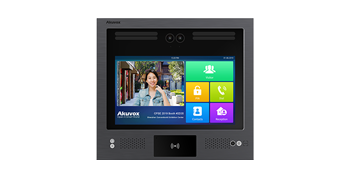

Akuvox SIP Android Door Phone
- Key Features
-
-
X916
The World's First Android Intercom with Starlight Camera Akuvox X916 SIP video doorphone is one of the most powerful models in the industry, which incorporates the latest technologies including starlight camera, HDR, Android 9.0, LTE and facial recognition. It is typically used in high-end apartment buildings and office buildings. - At a Glance
- Main camera features a built-in HDR mode to tackle a variety of high-contrast scenes;
- Intuitive interface with color touch display for superior resident and visitor usability;
- 13”fully-color touch display provides ultra-wide viewing angles;
- Presents information and user navigation options unique to your business;
- Supports SIP to provide reliable two-way voice & one-way video communication;
- Complies with ONVIF standard for easy integration with any network surveillance system;
- Physical & Power
- Front Panel: 316 grade stainless steel, RAM / ROM: 2GB / 16GB, Display: 13 Inch IPS LCD, Main Camera: 2M pixels, with starlight, Auxiliary Camera 1: 2M pixels, Auxiliary Camera 2: 0.3M pixels, Light sensor: Support, Infrared sensor: Support, Wiegand port: Support, RS485 port: Support, RF card reader: 13.56MHz & 125kHz, Relays out: 4, Inputs: 4, Reset button: 1, USB Interface: 2, HDMI Interface: 1, TF Card Slot: 1, Microphone: 2, -42dB, Speaker: 2, 8Ω / 2W, Power out: 12V / 500mA, Ethernet port: 2xRJ45, 10/100/1000Mbps adaptive, 12~24V DC connector, Water-proof & Dust-proof: IP65, lK Rating: IK07, Installation: Flush-mounted & Wall-mounted, Flush-mounted DIM: 383.9x339.15x63.7mm, Wall-mounted DIM: 383.9x339.15x48.95mm, Working Humidity: 10~90%, Working Temperature: -20°C ~ +55°C, Storage Temperature: -40°C ~ +70°C
- Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ, G.729
- Broadband audio codec: G.722
- DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
- Video
- Sensor: 1/2.8”, CMOS for main camera
- Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
- Video codec: H.264
- Video technology: HDR
- Video resolution: up to 1920x1080p
- Max. image transfer rate: 1080p – 30fps
- Viewing angle: 115°(H) / 63°(V)
- Compatible to 3rd-Party-Video components, e.g. NVRs
- Networking and Protocol
- Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
- Door Entry Feature
- Relays controlled individually by DTMF tones
- Camera permanently operational
- Auto-night mode with LED illumination
- White balance: auto
- Minimum illumination: 0.1LUX
- Deployment & Maintenance
- Auto-Provisioning, Web management portal, Web-based packet dump, Configuration backup / restore, Entry log export, Access table export / import, Firmware upgrade, System logs (include door access logs)
- Application Scenario
- Provides resident / visitor access control for buildings such as condominiums, apartment buildings, office buildings, gated communities and industrial buildings
-
X916
