Akuvox SIP Indoor Unit Bluetooth and Wireless
- Key Features
-
-
Akuvox C313W

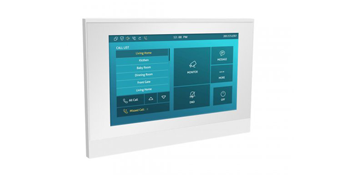

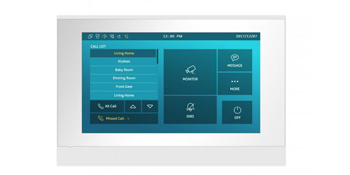

The C313W multifunctional communicator, which works as an indoor monitor, provides audio and video communication with Door phones via SIP 2.0 protocol. It delivers the ultimate touch screen experience in an unobtrusive, space-saving design featuring a brilliant 7-inch capacitive touch screen display. - Touch Screen Display
- Display Type: Active matrix TFT, transmissive type
- Size: 7 inch (176 mm) diagonal
- Aspect Ratio: 16:9
- Resolution: 800x480
- Brightness: 200nits (cd/m²)
- Contrast: 400:1
- Color Depth: 18-bit, 0.26M colors
- Illumination: Edgelit LED
- Viewing Angle: ±60° horizontal, ±70° vertical
- Touch Screen: Projected Capacitive
- Video
- Streaming Formats: H.264
- Audio
- Features: Built-in microphone and speaker
- Memory
- RAM: 64MB
- Flash: 128MB
- Interface
- Ethernet: 2x10/100 Mbps ports, auto-switching, auto-discovery, auto-negotiating, full/half duplex, DHCP, IEEE802.3af compliant
- Relay Out: 1x relay out (NO/COM/NC)
- Alarm In: 8x alarm input terminals
- Bell In: 1x bell input terminal
- RS485: 1x RS485 communication port
- Environmental
- Working temperature is -10°C~+40°C
- Humidity: 10% to 90% (non-condensing)
- Mechanical parameters
- Dimensions (W x H x D): 200 x 132 x 17.5 mm
- Application Scenario
- Villas
- Apartment complexes
- Home automation systems
- Modern interiors
-
