Link Ghana - Akuvox SIP Intercom With Keypad

Key Features
- R27

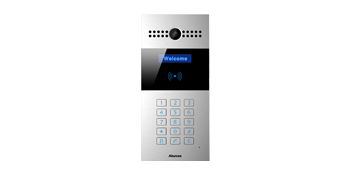

  SIP Video Doorphone
  Akuvox R27 is a SIP video doorphone with a numeric keypad. It is typically used in apartment buildings.
- At a Glance
- Vandal resistant body, with numeric keypad;
- Wide-angle camera: 116° (H), 60° (V);
- PoE (IEEE802.3af, Power-over-Ethernet);
- Two-way audio communication over IP networks with Echo Cancel feature;
- Complies with SIP standard for easy integration in every SIP capable PBXes;
- Complies with ONVIF standard for easy integration with any network surveillance system;
- Physical & Power
- Front panel: Aluminum, Camera: 2M pixels, automatic lighting, Numeric keypad with extra buttons, Light sensor: Support, Infrared sensor: Support, Wiegand port: Support, RS485 port: Support, RF card reader: 13.56MHz & 125kHz, Relays out: 3, Inputs: 3, Microphone: -40dB, Speaker: 8Ω / 2W, Power out: 12V/400mA, Ethernet port: RJ45, 10/100Mbps adaptive, 802.3af Power-over-Ethernet, 12V DC connector (if not using PoE), Water-proof & Dust-proof: IP65, Installation: Flush-mounted & Wall-mounted, Flush-mounted DIM: 280x130x68mm, Wall-mounted DIM: 280x130x38mm, Working Humidity: 10~90%, Working Temperature: -20°C ~ +55°C, Storage Temperature: -40°C ~ +70°C
- Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ, G.729
- Broadband audio codec: G.722
- DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
- Video
- Sensor: 1/2.7”, CMOS
- Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
- Video codec: H.264, H.265
- Video resolution: up to 1920x1080p
- Max. image transfer rate: 1080p – 30fps
- Viewing angle: 116°(H) / 60°(V)
- High intensity IR LEDs for picture lighting during dark hours with internal light sensor
- Compatible to 3rd-Party-Video components, e.g. NVRs
- Door Entry Feature
- Relays controlled individually by DTMF tones
- Camera permanently operational
- Auto-night mode with LED illumination
- White balance: auto
- Minimum illumination: 0.1LUX
- Networking & Protocol
- Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
- Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Entry log export
- Access table export / import
- Firmware upgrade
- System logs (include door access logs)
- Application Scenario
- Office door phone with on-site or hosted IP-PBX
- Remote site entry over Internet
- Apartment/flat intercom with door access control
