Akuvox SIP Intercom With One Button Wall
- Key Features
-
-

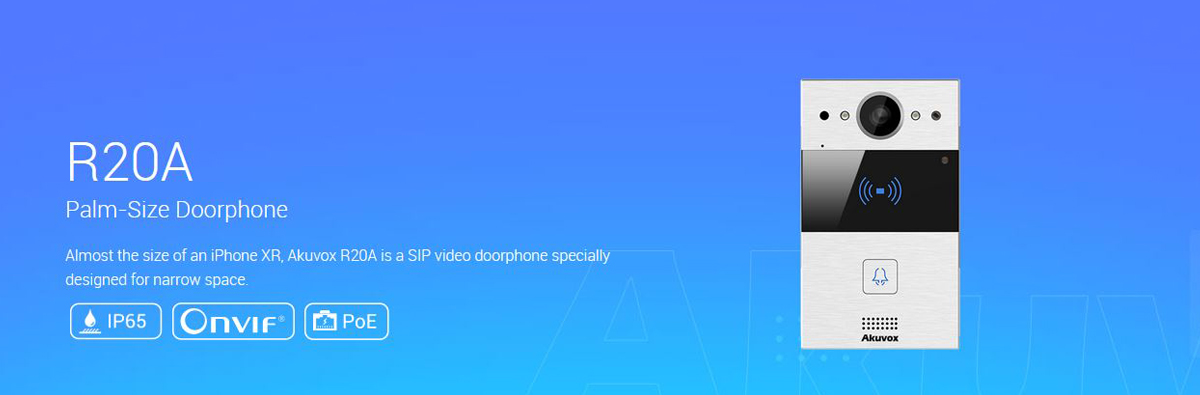

R20A
Compact SIP Video Doorphone
Almost the size of an iPhone XR, Akuvox R20A is a SIP video doorphone specially designed for narrow space. - At a Glance
- Vandal resistant body, with a flush button;
- Wide-angle camera: 120° (H), 64° (V);
- PoE (IEEE802.3af, Power-over-Ethernet);
- Two-way audio communication over IP networks with Echo Cancel feature;
- Complies with SIP standard for easy integration in every SIP capable PBXes;
- Complies with ONVIF standard for easy integration with any network surveillance system;
- Physical & Power
- Front panel: Aluminum alloy Camera: 3M pixels, automatic lighting, Button: 1 call button, Light sensor: Support Infrared sensor: Support, Wiegand port: Support, RF card reader: 13.56MHz & 125kHz, Relays out: 2, Inputs: 2, Microphone: -40dB, Speaker: 4Ω / 3W, Ethernet port: RJ45, 10/100Mbps adaptive, 802.3af Power-over-Ethernet, 12V DC connector (if not using PoE), Water-proof & Dust-proof: IP65, Installation: Flush-mounted or Wall-mounted, Flush-mounted DIM: 189x120x56.5mm, Wall-mounted DIM: 145x85x27.5mm, Working Humidity: 10~90%, Working Temperature: -20°C ~ +65°C, Storage Temperature: -40°C ~ +70°C
- Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261), Narrowband audio codec: G.711a, G.711μ, G.729, Broadband audio codec: G.722, DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info Echo Cancellation, Voice Activation Detection, Comfort Noise Generator
- Video
- Sensor: 1/3”, CMOS, Pixels: CIF, QCIF, VGA, 4CIF, 720p Video codec: H.264, Video resolution: up to 1280x720p, Max. image transfer rate: 720p – 30fps, Viewing angle: 120°(H) / 64°(V), High intensity IR LEDs for picture lighting during dark hours with internal light sensor, Compatible to 3rd-Party-Video components, e.g. NVRs
- Door Entry Feature
- Relays controlled individually by DTMF tones, Camera permanently operational, Auto-night mode with LED illumination, White balance: auto, Minimum illumination: 0.1 LUX
- Networking & Protocol
- Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
- Deployment & Maintenance
- Auto-Provisioning, Web management portal, Web-based packet dump, Configuration backup / restore, Entry log export, Access table export / import, Firmware upgrade, System logs (include door access logs)
- Application Scenario
- Office door phone with on-site or hosted IP-PBX, Remote site entry over Internet, Apartment/flat intercom with door access control
-
R20A
