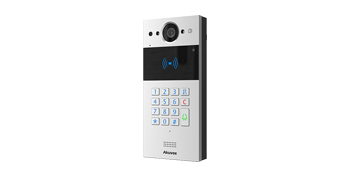

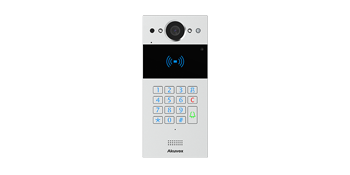

Akuvox Slim SIP Intercom with Keypad and RF Card
- Key Features
-
-
R20K
Compact SIP Video Doorphone
Space-saving and highly compatible, Akuvox R20K is a compact SIP video doorphone with a numeric keypad. It is typically used in apartment and office buildings. - Physical & Power
- Front panel: Aluminum alloy Camera: 2M pixels, automatic lighting, Numeric keypad with extra buttons, Light sensor: Support, Infrared sensor: Support, Wiegand port: Support, RS485 port: Support, RF card reader: 13. 56MHz & 125kHz, Relays out: 2, Inputs: 2, Microphone: -40dB, Speaker: 42Ω / 3W, Ethernet port: RJ45, 10/100Mbps adaptive, 802.3af Power- over - Ethernet, 12V DC connector (if not using PoE), Water-proof & Dust- proof: IP65, Installation: Flush-mounted or Wall- mounted, Flush-mounted DIM: 226x108x52mm, Wall- mounted DIM: 185x85x24mm, Working Humidity: 10 ~ 90%, Working Temperature: -30°C ~ +65°C, Storage Temperature: - 40°C~ + 70°C
- Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ, G.729
- Broadband audio codec: G.722
- DTMF: In- band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
- Video
- Sensor: 1/3”, CMOS
- Pixels: CIF, QCIF, VGA, 4CIF, 720p
- Video codec: H.265&H.264
- Video resolution: up to 1080p
- Max. image transfer rate: 720p -30fps
- Viewing angle: 110°(H) / 58°(V)
- High intensity IR LEDs for picture lighting during dark hours with internal light sensor
- Compatible to 3rd- Party video components, e.g. NVRs
- Networking and Protocol
- Protocols support: IPv4, HTTP,HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP. ARP
- Door Entry Feature
- Relays controlled individually by DTMF tones
- Camera permanently operational
- Auto- night mode with LED illumination
- White balance: auto
- Minimum illumination: 0.1LUX
- Deployment & Maintenance
- Auto- Provisioning, Web management portal, Web-based packet dump, Configuration backup / restore, Entry log export, Access table export / import, Firmware upgrade, System logs (include door access logs)
- Application Scenario
- Office door phone with on-site or hosted IP-PBX
- Remote site entry over Internet
- Apartment/flat intercom with door access control
-
R20K
