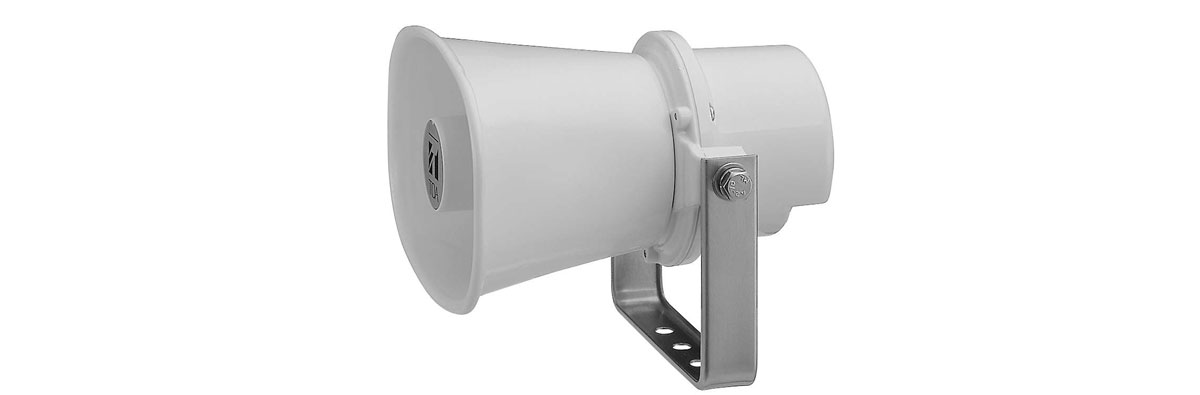

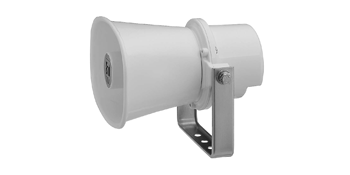

SC-610M TOA 10 W Reflex Horn Speaker for wide Frequency Response (100V version)
- Key Features
-
- The SC-610M Horn Speaker is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit's weatherproof capability.
- Very rugged speaker with durable construction ensures long term reliable operation
- High quality sound
- High SPL
- Easy impedance selection through switch
- High impedance 100 V line
- Shock resistant oval horn
- Frequency Response
315 Hz - 12.5 kHz - Connection
Cable with 2 wires - Sensitivity (1 W, 1 m)
110 dB - Rated input (High Impedance)
10 W - Tappings
100V line: 1kΩ (10W), 2kΩ (5W), 3.3kΩ (3W), 10kΩ (1W)70V line: 500Ω (10W), 1kΩ (5W), 2kΩ (2.5W), 3.3kΩ (1.5W), 10kΩ (0.5W) - Operating temperature
-20 °C to +55 °C (must be free from dew condensation) - Finish
Aluminium, powder coating, off-white (RAL 9010 or equivalent) - Dimensions
172 x 161 x 188 mm (W x H x D) - Weight
1.2 kg
