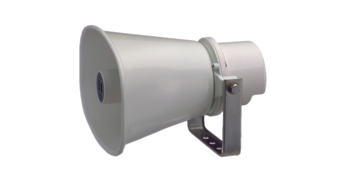

SC-615M TOA 15 W Reflex Horn Speaker for wide Frequency Response (100V version)
- Key Features
-
- The SC-615M is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit's weatherproof capability.
- Rated Input
15 W - Line Voltage
100 V line or 70 V line - Rated Impedance
100 V line: 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W)70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W),2 kΩ (2.5 W), 3.3 kΩ (1.5 W) - Sound Pressure Level
112 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level) - Frequency Response
280 Hz - 12.5 kHz - Dust/Water Protection
IP65 - Polarity
Hot: Black, Com: White - Operating Temperature
-20 ℃ to +55 ℃ (must be free from dew condensation) - Finish
Horn flare: Aluminum, off-white, powder coating Reflector horn and rear cover: ABS resin, off-white Bracket, Screws and bolts: Stainless steel Speaker cable: Polyvinyl chloride insulated cabtyre cable(6 mm in diameter, 600 mm in length) - Dimensions
222 (W) × 179 (H) × 234 (D) mm - Weight
2.5 kg (unit only)
