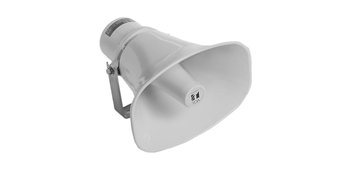

SC-630M TOA 30 W Reflex Horn Speaker for wide Frequency Response (100V version)
- Key Features
-
- The SC-630M is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit's weatherproof capability. Photo
- Rated Input
30 W - Line Voltage
100 V line or 70 V line - Rated Impedance
100 V line: 330 Ω (30 W), 670Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)70 V line: 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W),1 kΩ (5 W), 2 kΩ (2.5 W) - Sound Pressure Level
113 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level) - Frequency Response
250 Hz - 10 kHz - Dust/Water Protection
IP65 - Polarity
Hot: Black, Com: White - Operating Temperature
-20 ℃ to +55 ℃ (must be free from dew condensation) - Finish
Horn flare: Aluminum, off-white, powder coating Reflector horn and rear cover: ABS resin, off-white Bracket, screws and bolts: Stainless steel Speaker cable: Polyvinyl chloride insulated cabtyre cable (6 mm in diameter, 600 mm in length) - Dimensions
285 (W) × 227 (H) × 277 (D) mm - Weight
2 kg
