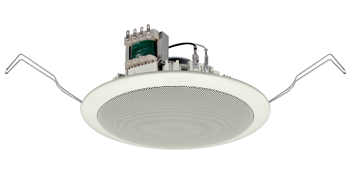

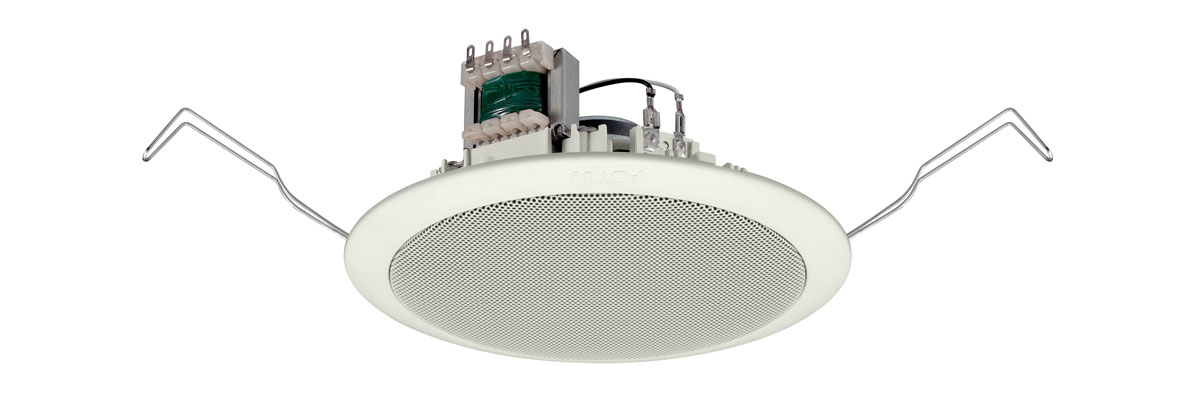

PC-648R TOA 6 Watt Clip-in Ceiling Speaker 5 inch - White
- Key Features
-
- Integrated with a resin panel and speaker frame, the PC-648R is the ceiling mount speaker with a metal attached. It features spring clamp mechanism for easy speaker mounting to the ceiling. The input impedance can be easily changed by changing the tap position of the transformer.
- Rated Input
6 W (100 V line), 3 W (70 V line) - Rated Impedance
100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W) - Sensitivity
90 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise) - Frequency Response
100 Hz - 18 kHz (peak -20 dB) - Speaker Component
12 cm (5") cone-type - Dimensions for Fixing Hole
Mounting hole: φ145±5 mm (φ5.71"±0.2") Ceiling thickness: 5 - 25 mm (0.2" - 0.98") - Speaker Mounting Method
Spring clamp - Finish
Baffle: Polypropylene resin, white (RAL 9016 equivalent) Grille: Surface-treated steel plate net, white (RAL 9016 equivalent), paint - Dimensions
φ168 × 77 (D) mm (φ6.61" × 3.03") - Weight
470 g (1.04 lb)
