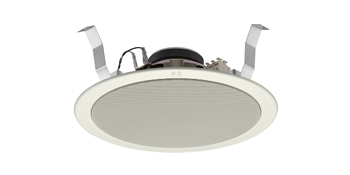

PC-2869 TOA 6W Ceiling Speaker 8" 20cm 94DB 1W/1M White
- Key Features
-
- Integrated with a speaker unit and panel, the PC-2869 Ceiling Mount Speaker is of all metallic construction and ideal for use in a voice alarm system. It feature spring clamp mechanism for easy speaker mounting to the ceiling. The input impedance can be easily changed by changing the tap position of the transformer. The push-in type input terminal block makes cable connections easy and allows bridge wiring.
- Rated Input
6 W (100 V line), 3 W (70 V line) - Rated Impedance
100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W) - Sensitivity
94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise) - Frequency Response
40 Hz - 20 kHz (peak -20 dB) - Speaker Component
20 cm (8") double cone-type - Dimensions for Fixing Hole
Mounting hole: φ250±3 mm (φ9.84"±0.12") Ceiling thickness: 5 - 25 mm (0.2" - 0.98") - Speaker Mounting Method
Spring clamp - Applicable Cable
600 V vinyl-insulated cable (IV wire or HIV wire) Solid copper wire: φ0.8 - φ1.6 mm (equivalent to AWG 20 - 14) 7-core twisted copper wire: 0.75 - 1.25 m㎡ (equivalent to AWG 18 - 16) - Connection
Push-in connector (bridging terminal-2 branch type) - Finish
Baffle: Steel plate, white (RAL 9016 equivalent), paint Grille: Surface-treated steel plate net, white (RAL 9016 equivalent), paint - Dimensions
φ280 × 92 (D) mm (φ11.02" × 3.62") - Weight
1.4 kg (3.09 lb)
