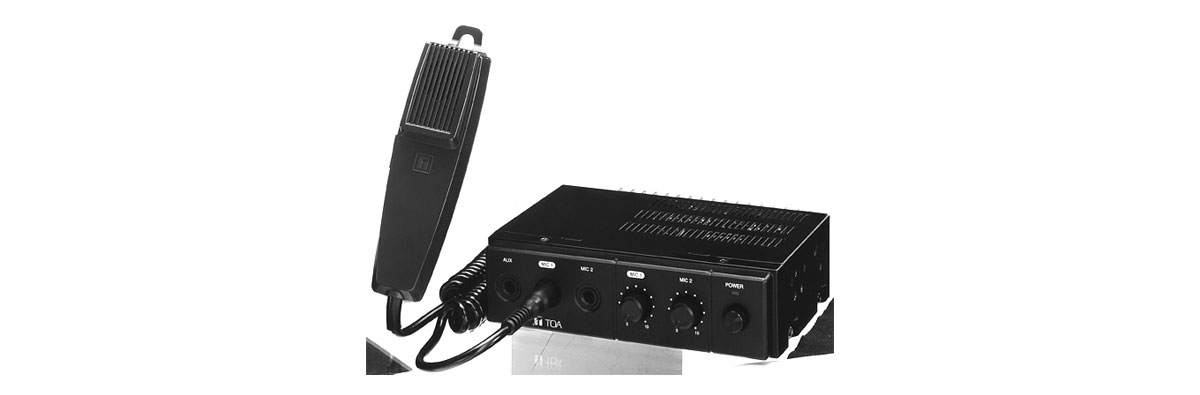

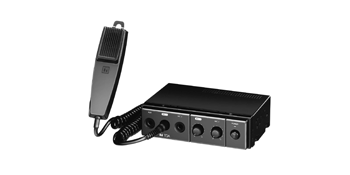

TOA Mobile Amplifier 60W
- Key Features
-
- The CA-160 is a 1-DIN size unit 60 W car amplifier designed for use with a 12 V car battery.
- Power Source
Standard voltage: 14 V DC Usable voltage: 10 - 16 V DC (12 V battery used) - Power Consumption
9 A or less at rated output - Rated Output
60 W - Output Impedance
4 Ω (BRN), 8 Ω (ORG), Common (WHT) Changeable by changing lead wire connections - Distortion
Less than 5% (at 1,000 Hz rated output) - Frequency Response
100 - 10,000 Hz - Input
Mic1, 2: 600 Ω, 4 mV, phone jack Aux : 10 kΩ, 500 mV, phone jack - Finish
Front panel: ABS resin, black Case : Zinc plated steel sheet - Dimensions
178 (W) × 50 (H) × 170 (D) mm (Mounting device excluded) - Weight
1.2kg - Accessory
Microphone holder …… 1, Mounting bracket …… 1, Mounting screw …… 1set,Fuse (12 A) …… 1, Connection cord …… 1set - Accessory Microphone
Unidirectional dynamic type with talk switch Impedance: 600 Ω Sensitivity : -53 dB (1 kHz, 0 dB = 1 V/Pa)
