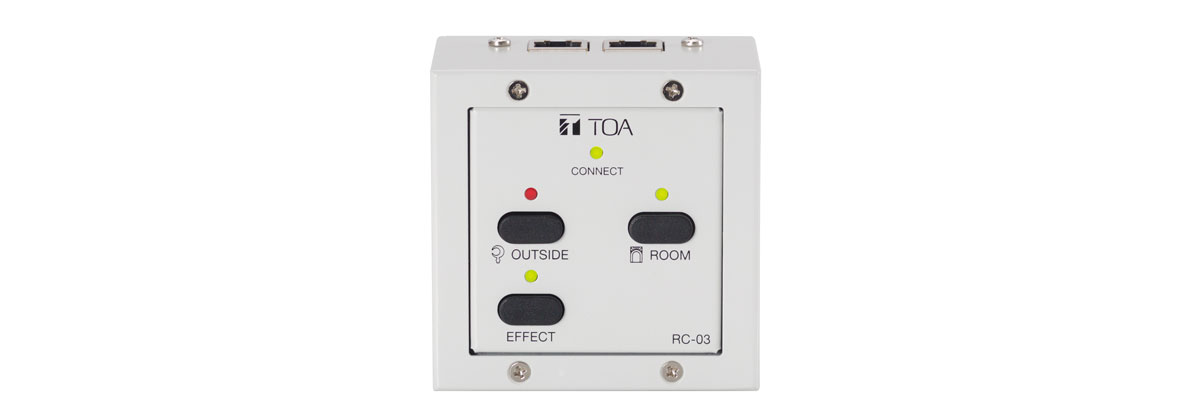

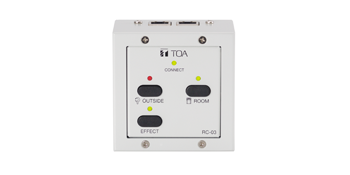

TOA RC-03 Remote Controller
- Key Features
-
-
The RC-03 Remote Controller exclusively designed for use in conjunction with the MX-6224D permits ON/OFF control of speaker zones and sound effect function.
- Power Source
5 V DC (supplied from MX-6224D) - Power Output
120 mA Maximum - Terminal
RJ-45 connector - Controls
1 ROOM ON/OFF control switch 1 OUTSIDE ON/OFF control switch 1 Effect ON/OFF control switch - Indicators
CONNECTION indicator Output ON/OFF for ROOM and OUTSIDE EFFECT ON/OFF - Connection Cable
Shielded Category 5 twisted pair Straight cable for LAN (CAT5-STP) Unshielded Category 5 twisted pair Straight cable for LAN (CAT5-UTP) - Maximum cable length
200 m (656.17 ft) - Operating Temperature
0 ℃ to +40 ℃ (32 ゜F to 104 ゜F) - Operating Humidity
35 % to 80 %RH (no condensation) - Dimensions
86 (W) × 87.2 (H) × 55.3 (D) mm (3.39" × 3.43" × 2.18") - Weight
380 g (0.84 lb) - Finish
Plated steel sheet, paint, white (RAL 9016 equivalent), paint
-
