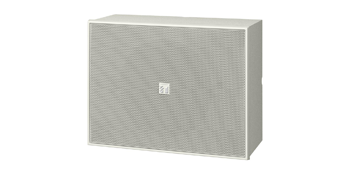

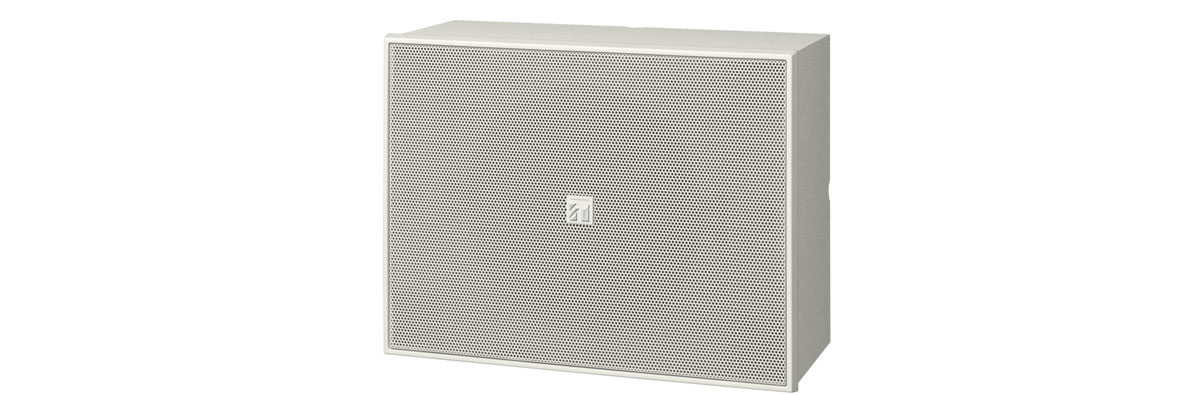

Link Ghana - TOA 6 Watt Wall Speaker White

Key Features
- The BS-678, of which cabinet is made of wood, can be installed in a vertical or horizontal orientation. Either concealed in-wall wiring or exposed wiring can be used for speaker cable connection. The speaker structure that permits direct wall-mounting with screws prevents the speaker from falling easily even if an outward force is applied to. The input impedance can be easily changed by changing the tap position of the transformer. Two built-in 6-inch double cone speaker units deliver high quality sound. The push-in type input connector makes cable connections easy and allows bridge wiring.
- Rated Input
  6 W (100 V line), 3 W (70 V line)
- Rated Impedance
  100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W)70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W)
- Sensitivity
  94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)
- Frequency Response
  150 Hz - 20 kHz (peak -20 dB)
- Speaker Component
  16 cm (6") double cone-type
- Dimensions for Fixing Hole
  Mounting hole: φ250±3 mm (φ9.84"±0.12") Ceiling thickness: 5 - 25 mm (0.2" - 0.98")
- Speaker Mounting Method
  Spring clamp
- Applicable Cable
  600 V vinyl-insulated cable (IV wire or HIV wire) Solid wire: φ0.8 - φ1.6 mm (equivalent to AWG 20 - 14)7-core twisted wire: 0.75 - 1.25 m㎡ (equivalent to AWG 18 - 16)
- Connection
  Push-in connector (bridging terminal)
- Finish
  Baffle: HIPS, off-white (RAL 9010 or equivalent color) Cabinet: Particle board with pvc sheet, off-white (RAL 9010 or equivalent color)Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color)
- Dimensions
  250 (W) × 190 (H) × 110 (D) mm (9.84" × 7.48" × 4.33")
- Weight
  1.7 kg (3.75 lb)
