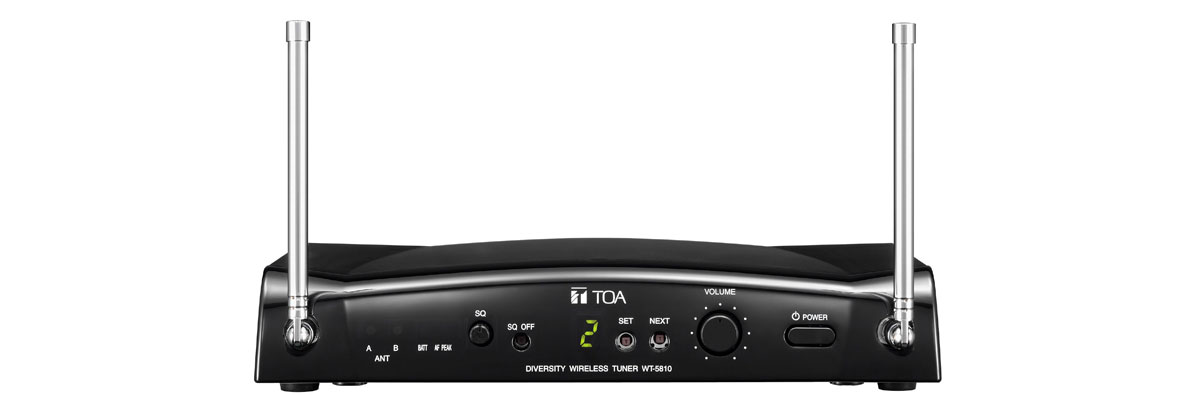

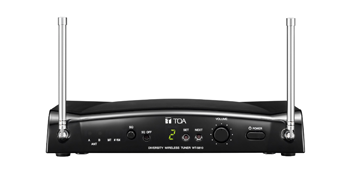

TOA Wireless Tuner 16 selectable channels with TOA space diversity (No amp interlink cable supplied)
- Key Features
-
-
The WT-5810 is a PLL-synthesizer controlled double superhetrodyne diversity tuner designed to be used with a UHF wireless system. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise.
- Diversity operation
- Automatic frequency scan
- Additional audio mixing input
- Adjustable triple-squelch
- Battery status indicator
- Provides 16 intermodulation-free frequencies
- Allows simultaneous operation for up to 16 WT-5810 units without running the risk of interferences
- Excellent unit to take to every gig or lecture
- Other features: Battery status LED, channel display, AF peak LED, antenna A/B-LED
-
The WT-5810 is a PLL-synthesizer controlled double superhetrodyne diversity tuner designed to be used with a UHF wireless system. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise.
- Power Source
AC mains (supplied AC adapter must be used) - Diversity principle
Space diversity (antenna switching) - Frequency response
100 Hz - 15 kHz - Frequency range
***i12318*** - Antenna inputs
No (fixed rod antenna) - Nominal output level
Mic: -60 dBV, line: -20 dBV - Audio mixing input
¼“ jack unbalanced - Indicator
ANT A/B, Audio (peak), Battery alarm, Channel number - Selectable frequencies (combined)
16 - Simultaneous channels (combined)
16 (16) - Operating humidity
30 % - 85 % RH - Operating temperature
–10°C to +50°C (14°F to 122°F) - Finish
Resin, black - Dimensions
206 x 40.6 x 152.7 mm (W x H x D) - Weight
590 g
